Description

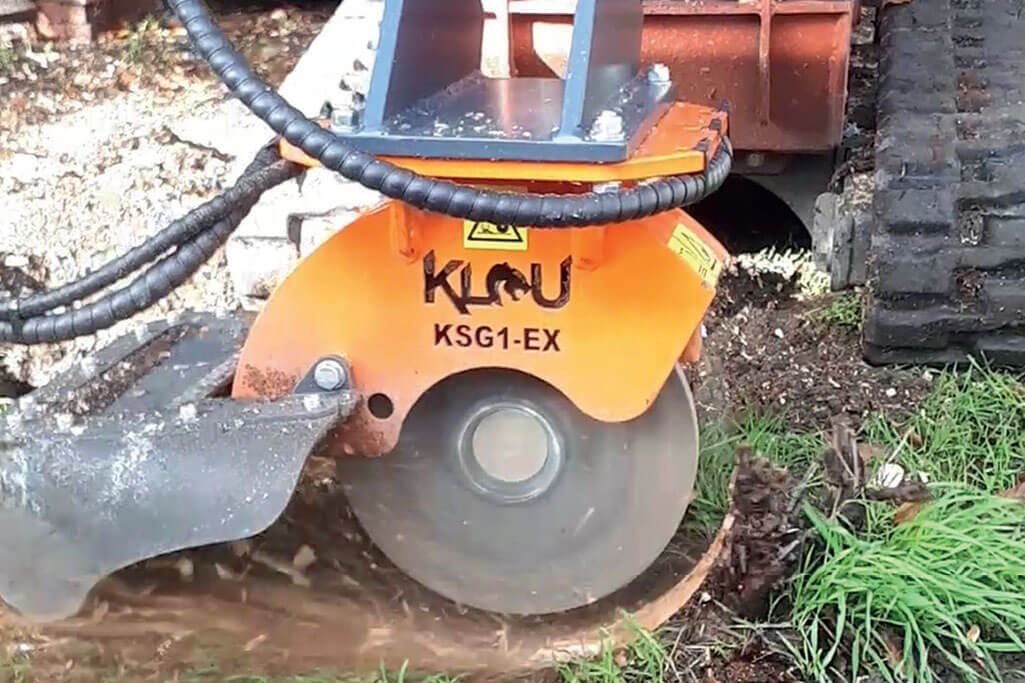

The KSG1-EX and KSG2-EX are high-performance stump- grinding attachments. Using highly efficient direct-drive axial-piston hydraulic motors, they put all available hydraulic power to good use, ensuring that stumps are removed rapidly and effectively. The build quality is second-to-none, with all components carefully designed to withstand the robust treatment that is often required to get the job done. Despite this, the KSG series is exceedingly compact, making it easily manageable even for smaller excavators.

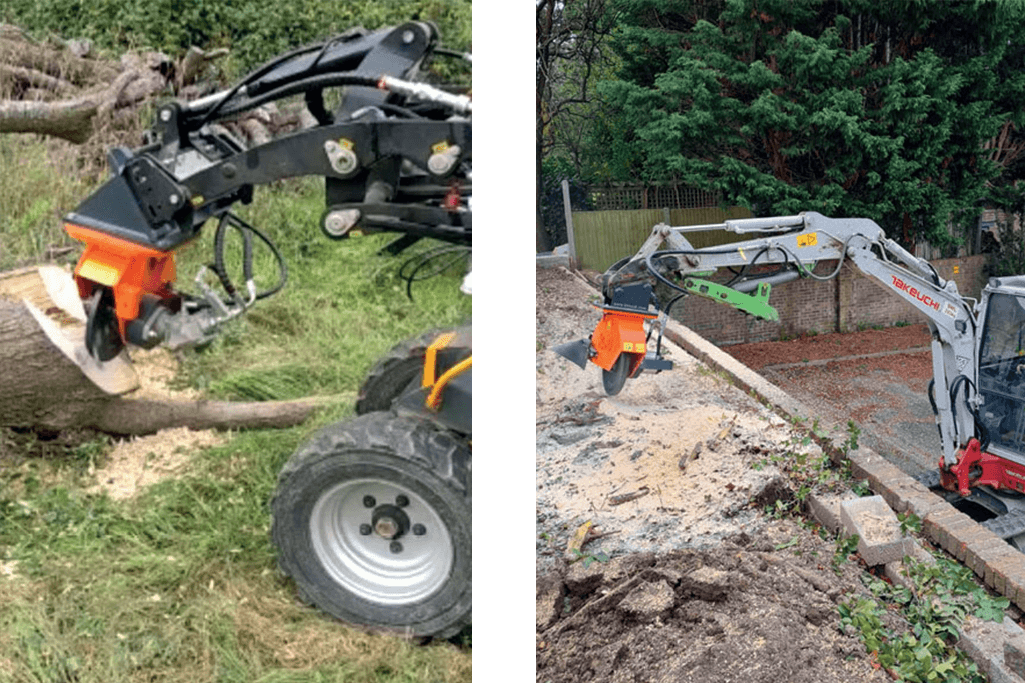

The reach of the carrier machine can be used to access stumps that are difficult or impossible to get close to – some common locations include:

• Steep embankments – such as beside roads/railways
• In flower-beds/ornamental borders
• Behind fences

The reach of the carrier machine can also reduce the amount of re-positioning required when removing multiple stumps, minimising damage to sensitive surfaces such as lawns.

Product Features

The transverse mounting position ensures the best possible visibility for the operator, preventing fatigue in order to boost efficiency

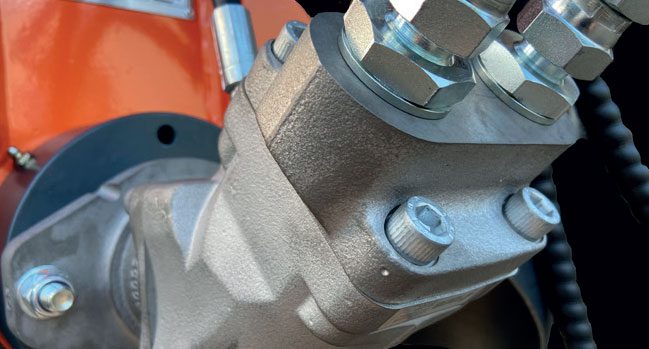

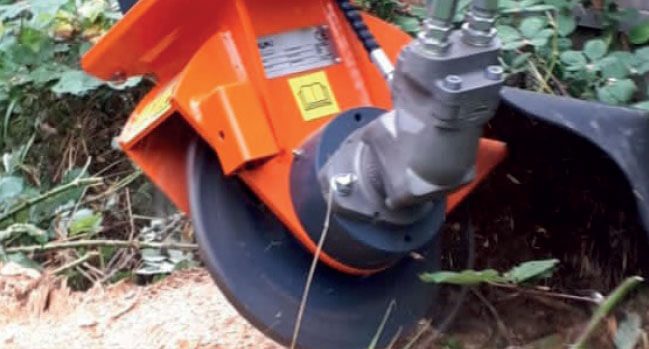

The large-displacement axial piston motor runs well within its maximum power rating, minimising wear for a long service life while reducing power losses to heat generation, maximising efficiency

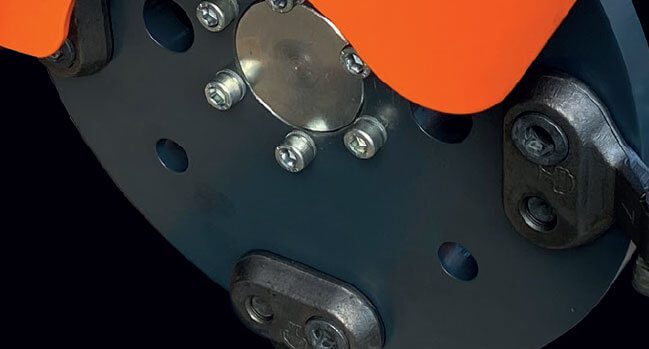

The practically unbreakable tempered steel shaft runs in two massive taper-roller bearings, offering all of the efficiency gains of a direct-drive system (no power lost to belts or gearboxes), while protecting the motor from high axial and radial loads

The cutting wheel turns at a relatively low speed but with very high torque, which ensures that power goes into the stump rather being lost to aerodynamic drag

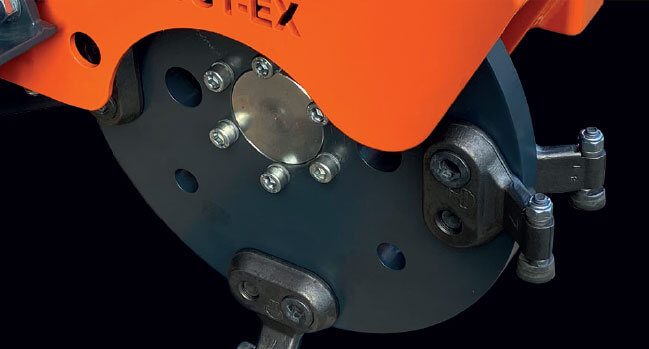

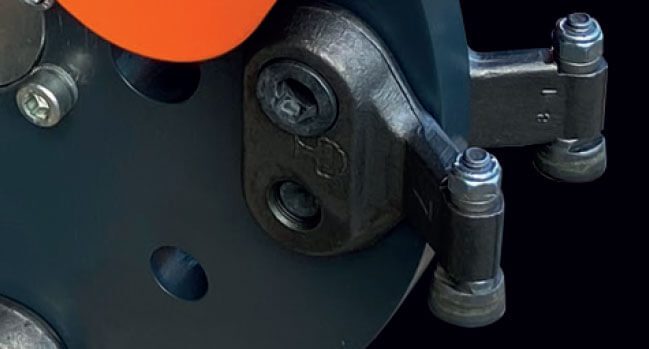

The replaceable, self-sharpening tungsten carbide teeth have multiple cutting edges, reducing wearing part costs, and can easily be rotated or changed without the need to brace the cutting wheel

The guard is mounted on a pivot, allowing it to move clear as you get deeper into the cut, while still preventing debris being thrown far from the working area

The cutting wheel is designed to retain momentum, evening out load peaks, and permitting smooth, even cuts

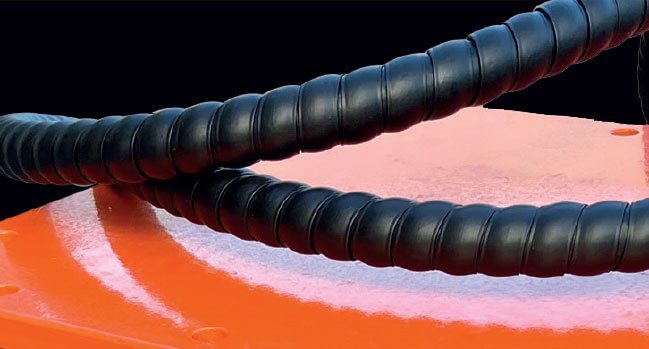

The hydraulic pipes are spiral-wrapped, protecting them from scuff wear
