SG18090

SG18090

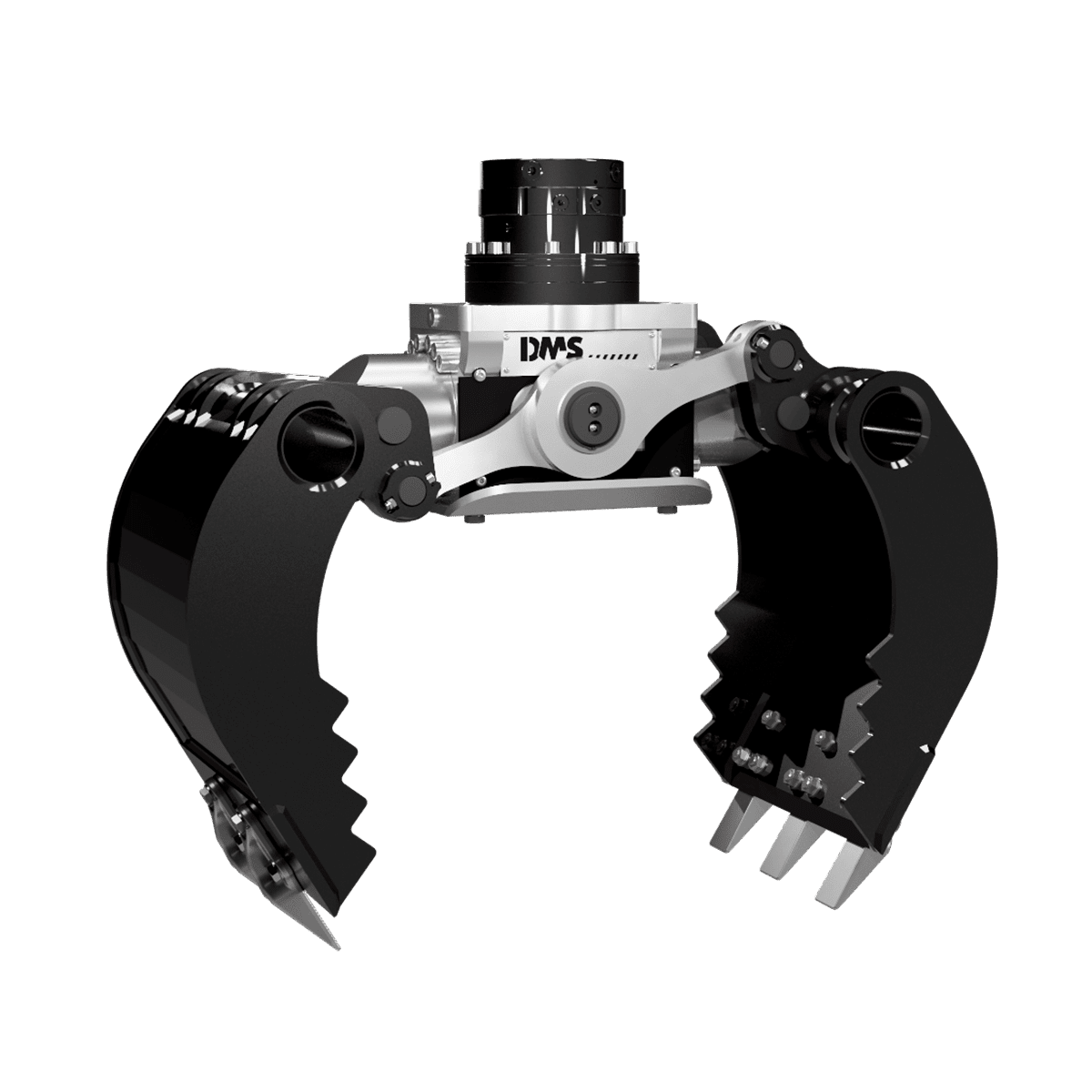

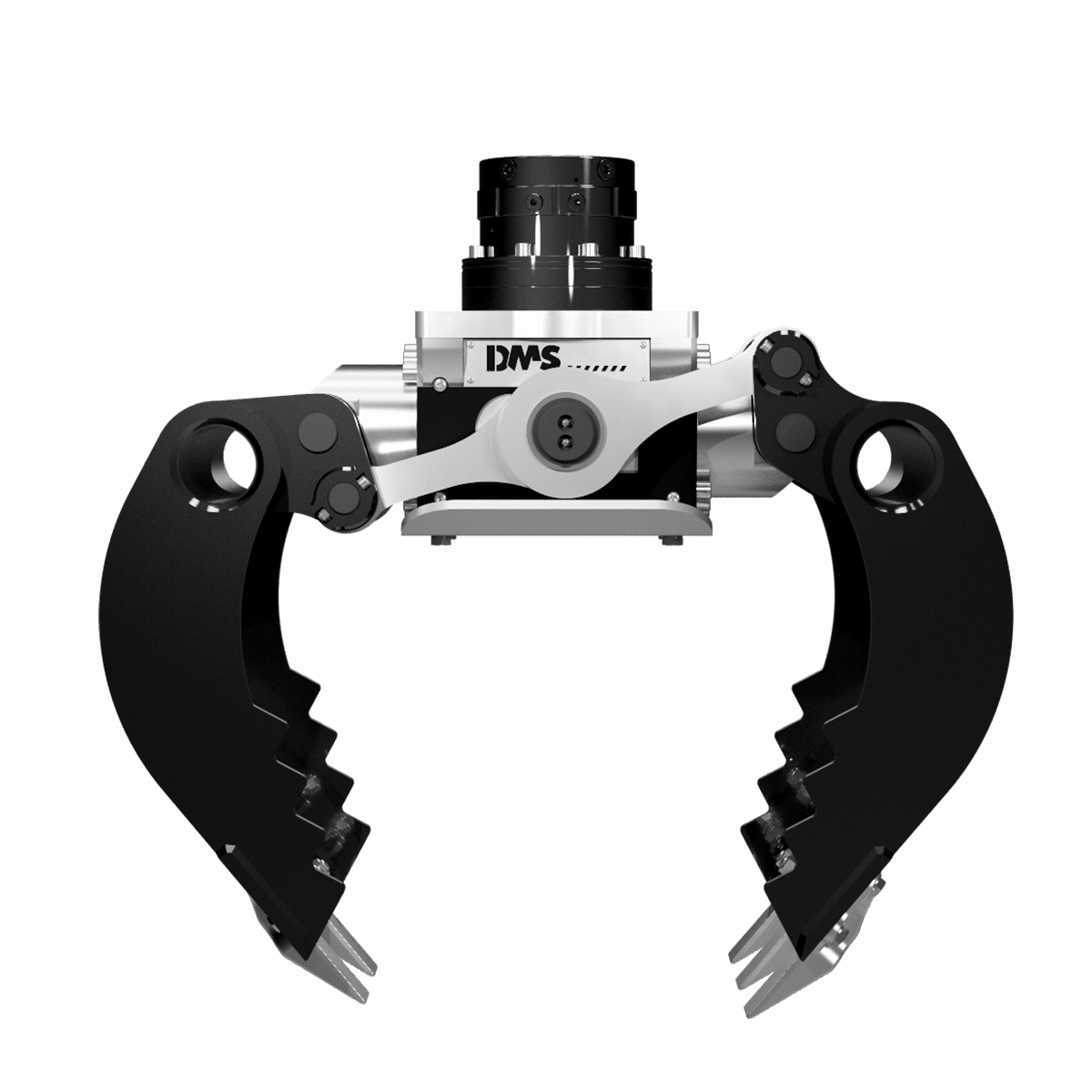

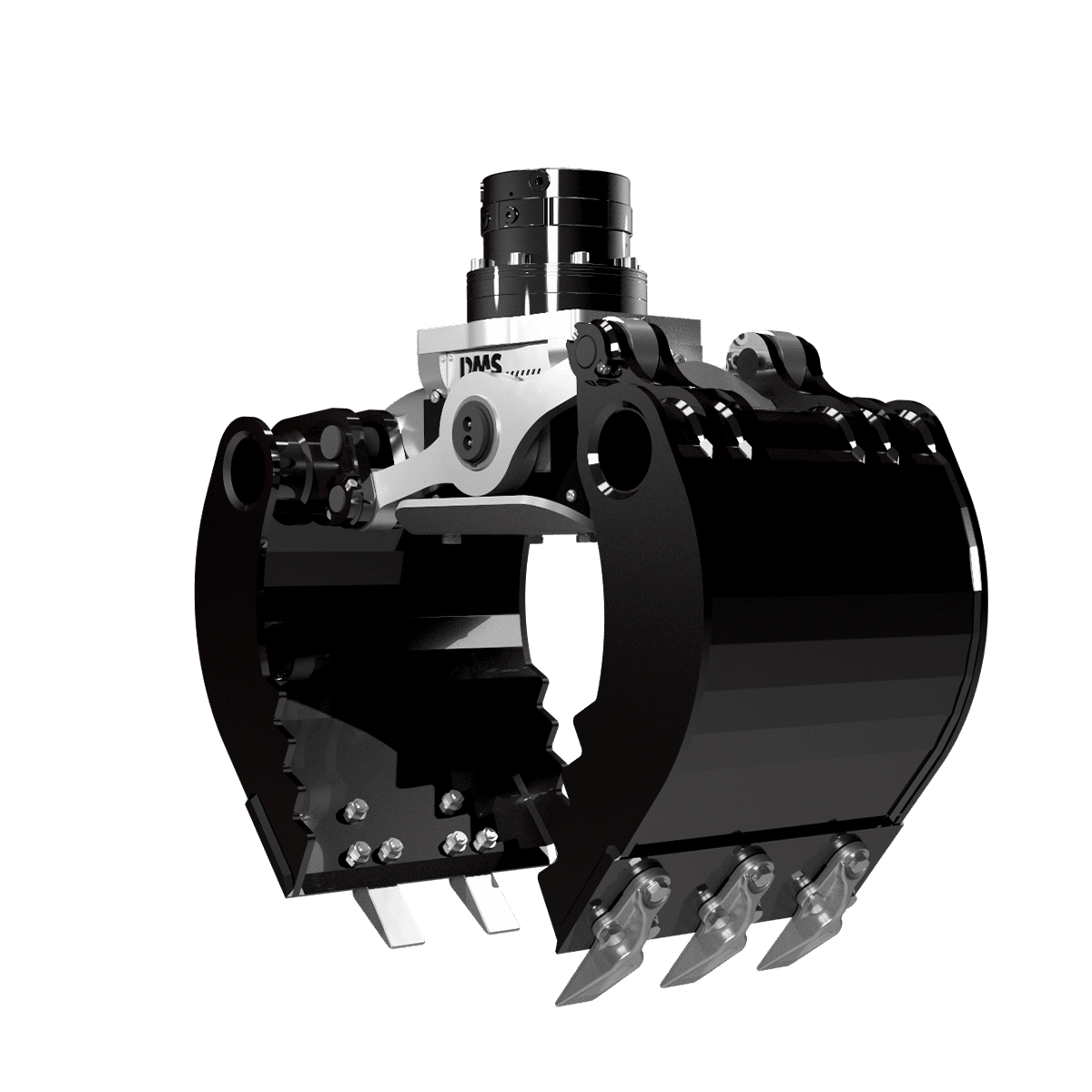

The Sorting Grab SG18090 by DMS Technology is a versatile all-round attachment designed for a wide range of applications, particularly in gardening and landscaping. The multi-purpose grab is suitable for tasks such as stone placement, loading green waste, and handling bulk materials. Its wide-opening shells also allow the safe movement of bulky objects. The specialised design combined with patented cylinder technology ensures high closing force, exceptional robustness, and reliable operation while minimising the risk of failure.

Low profile grab design
Low profile
The grab features a low overall height in both the open and closed positions. Its compact design provides an efficient balance between performance and weight.
Optimal grip design
Optimal grip
The shells provide a wide opening range while maintaining a compact profile when closed. This design enables reliable handling of both large and small diameter objects.

Due to high-quality material composition and optimal lubrication.

Vulnerable components are completely enclosed and protected.

Innovations such as Softgrip and Pipegrip open up new application possibilities.

SG18090

The Sorting Grab SG18090 by DMS Technology is a versatile all-round attachment designed for a wide range of applications, particularly in gardening and landscaping. The multi-purpose grab is suitable for tasks such as stone placement, loading green waste, and handling bulk materials.

Description

The Sorting Grab SG18090 by DMS Technology is a versatile all-round attachment designed for a wide range of applications, particularly in gardening and landscaping. The multi-purpose grab is suitable for tasks such as stone placement, loading green waste, and handling bulk materials. Its wide-opening shells also allow the safe movement of bulky objects. The specialised design combined with patented cylinder technology ensures high closing force, exceptional robustness, and reliable operation while minimising the risk of failure.

Low profile grab design
Low profile
The grab features a low overall height in both the open and closed positions. Its compact design provides an efficient balance between performance and weight.
Optimal grip design
Optimal grip
The shells provide a wide opening range while maintaining a compact profile when closed. This design enables reliable handling of both large and small diameter objects.
Capacity [l] 542
Weight (without rotator) [kg] 864
Weight rotator [kg] 164
Operating pressure opening/closing [bar] 350
Operating pressure rotation [bar] 320
Recommended pump capacity rotation [l] 15–30
Recommended pump capacity opening/closing [l] 40–150
Closing force [kN] 52
Torque [Nm] 4200
Number of teeth 7
