BF100 tilling drum

BF100 tilling drum

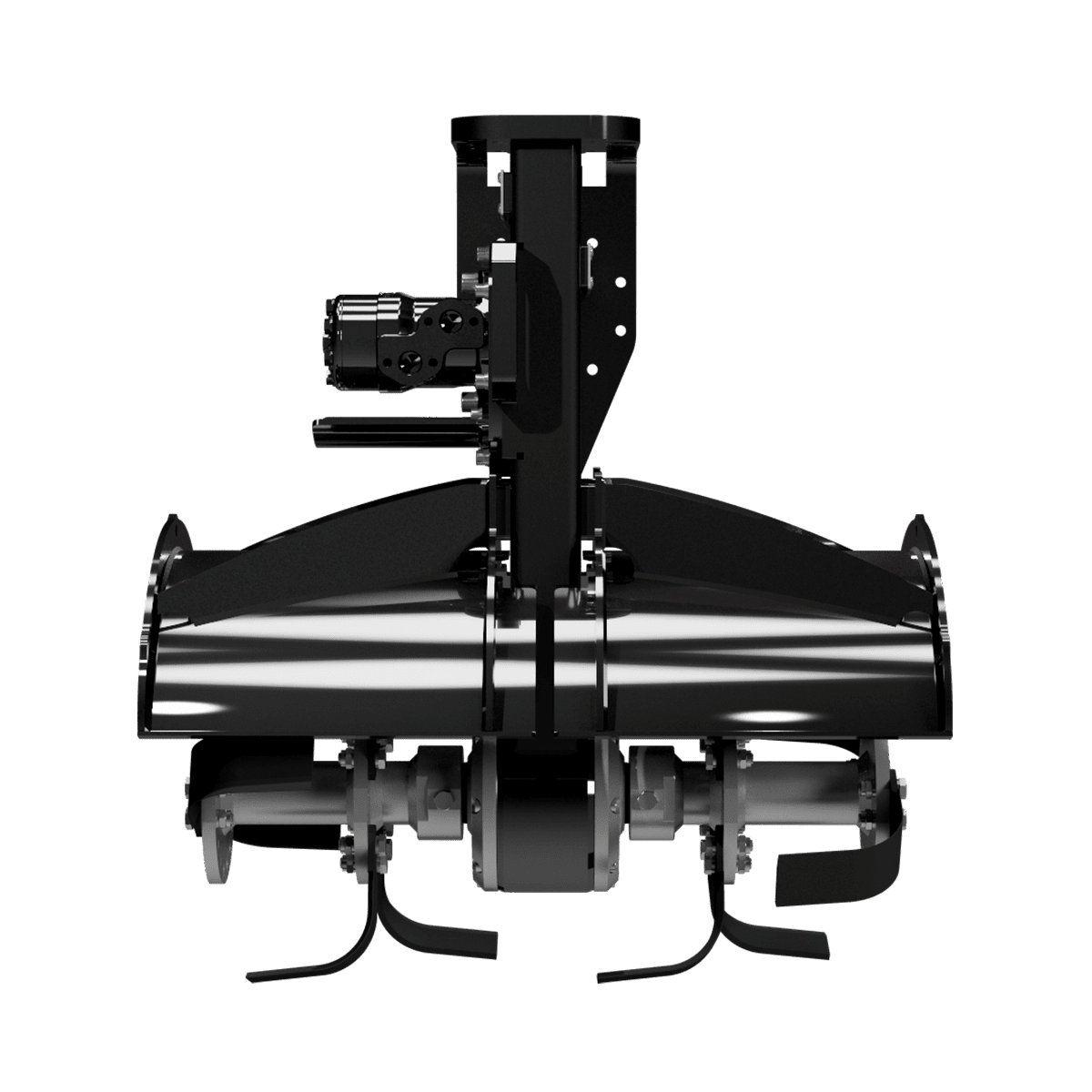

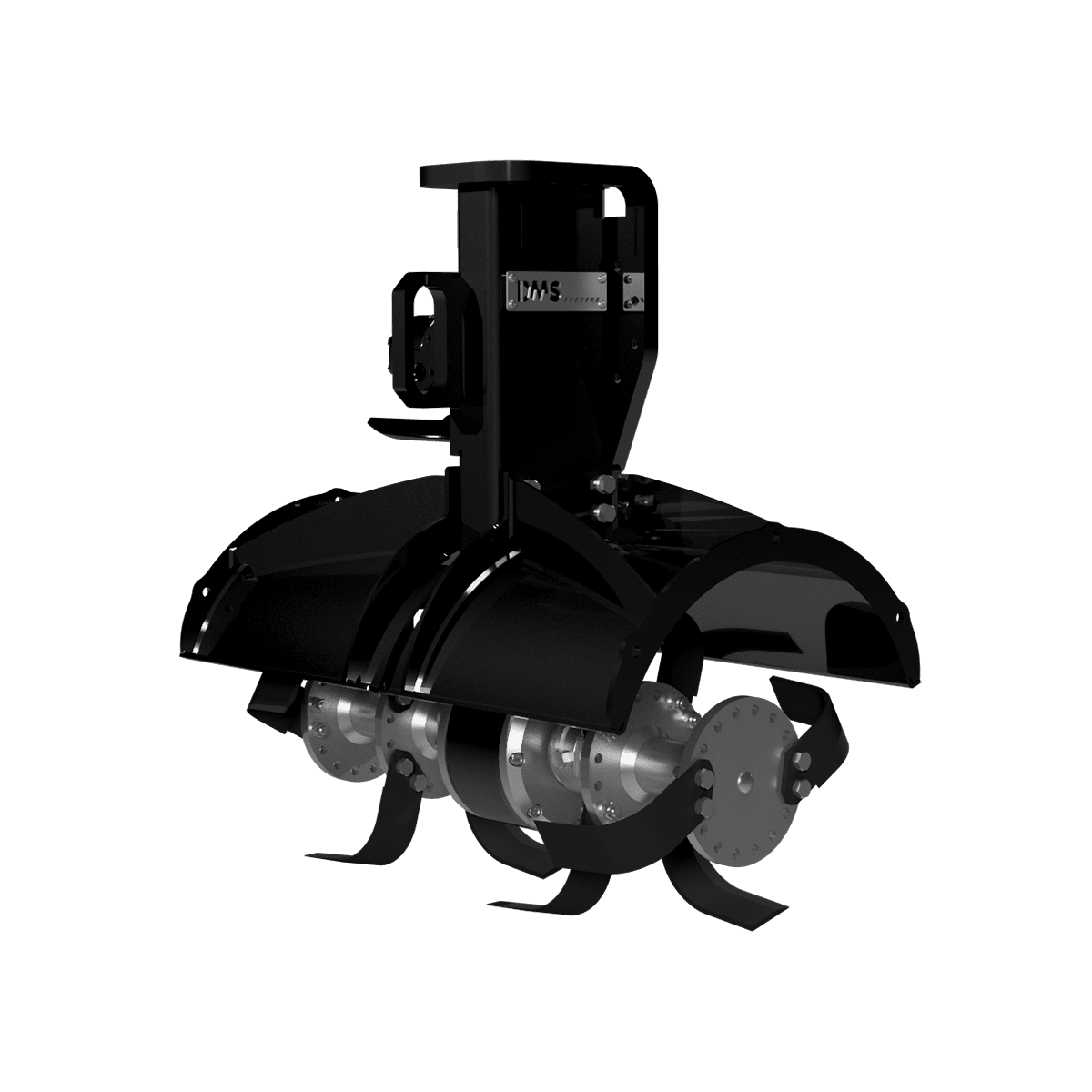

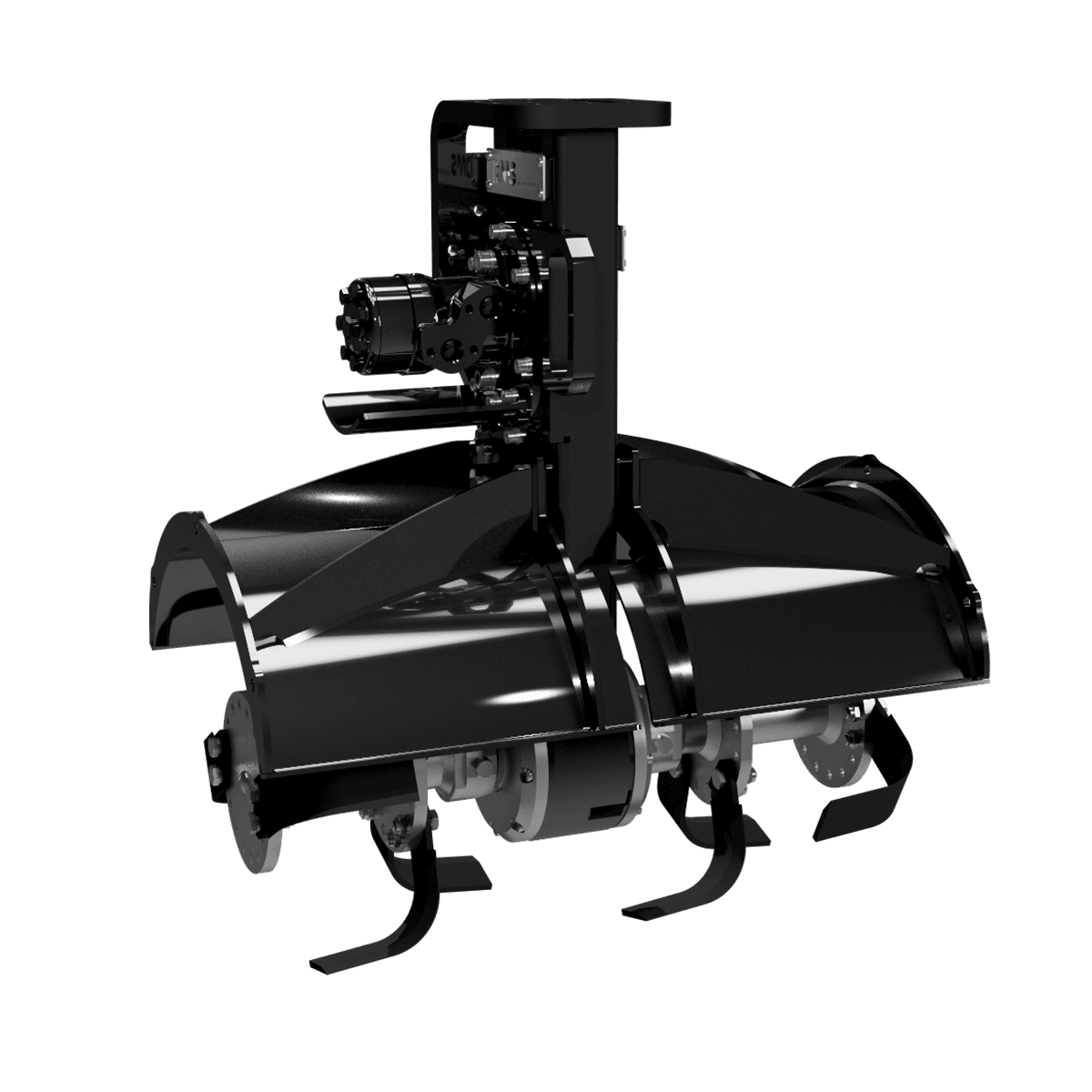

The **Rotary Tiller BF100 with tilling drum by DMS Technology** is our product innovation for maximum multifunctionality and a versatile tool for compact and mini excavators. It can be used as an **attachment solution for work on all types of surfaces** and also allows efficient access to hard-to-reach areas. The drive unit is equipped with a practical exchange system that enables fast and uncomplicated replacement of different tool attachments. The BF100 version with extended tilling drums and guard plates is suitable for excavator classes up to 12 t.

Expandable design
Expandable
The tilling drums and guard plates are also offered in 100 mm wide versions.
Multifunctional design
Multifunctional
The tiller can also be converted for use as a rotary weed brush or hydraulic broom.

Useful for soil tilling, weed removal or broom cleanup.

Single screw quick-change function for changing tool attachments in minutes.

The robust design enables long, maintenance-free use under extreme conditions.

BF100 tilling drum

The **Rotary Tiller BF100 with tilling drum by DMS Technology** is our product innovation for maximum multifunctionality and a versatile tool for compact and mini excavators. It can be used as an **attachment solution for work on all types of surfaces** and also allows efficient access to hard-to-reach areas. The drive unit is equipped with a practical exchange system that enables fast and uncomplicated replacement of different tool attachments. The BF100 version with extended tilling drums and guard plates is suitable for excavator classes up to 12 t.

Description

The **Rotary Tiller BF100 with tilling drum by DMS Technology** is our product innovation for maximum multifunctionality and a versatile tool for compact and mini excavators. It can be used as an **attachment solution for work on all types of surfaces** and also allows efficient access to hard-to-reach areas. The drive unit is equipped with a practical exchange system that enables fast and uncomplicated replacement of different tool attachments. The BF100 version with extended tilling drums and guard plates is suitable for excavator classes up to 12 t.

Expandable design
Expandable
The tilling drums and guard plates are also offered in 100 mm wide versions.

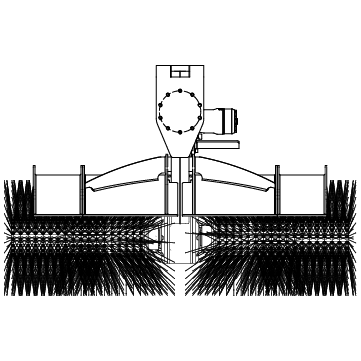

Multifunctional design
Multifunctional
The tiller can also be converted for use as a rotary weed brush or hydraulic broom.
BF100 tilling drumBF100 broom sweeper
Excavator class [t]6–126–12
Weight [kg]290255
Width [mm]12001500
Max. hydraulic flow [l/min]125125
Operating pressure [bar]210210
Drum speed at 100 l/min [1/min]260260
