Transform your large frame skid steer or compact track loader into a precision grader blade
SharpGrade’s grader blade attachments are purpose-built for skid steers and compact track loaders, combining strength, innovation, and speed. With features like the patented QuadRod linkage and optional hydraulic wings, every attachment helps construction, landscaping, and paving professionals complete jobs with precision and efficiency.

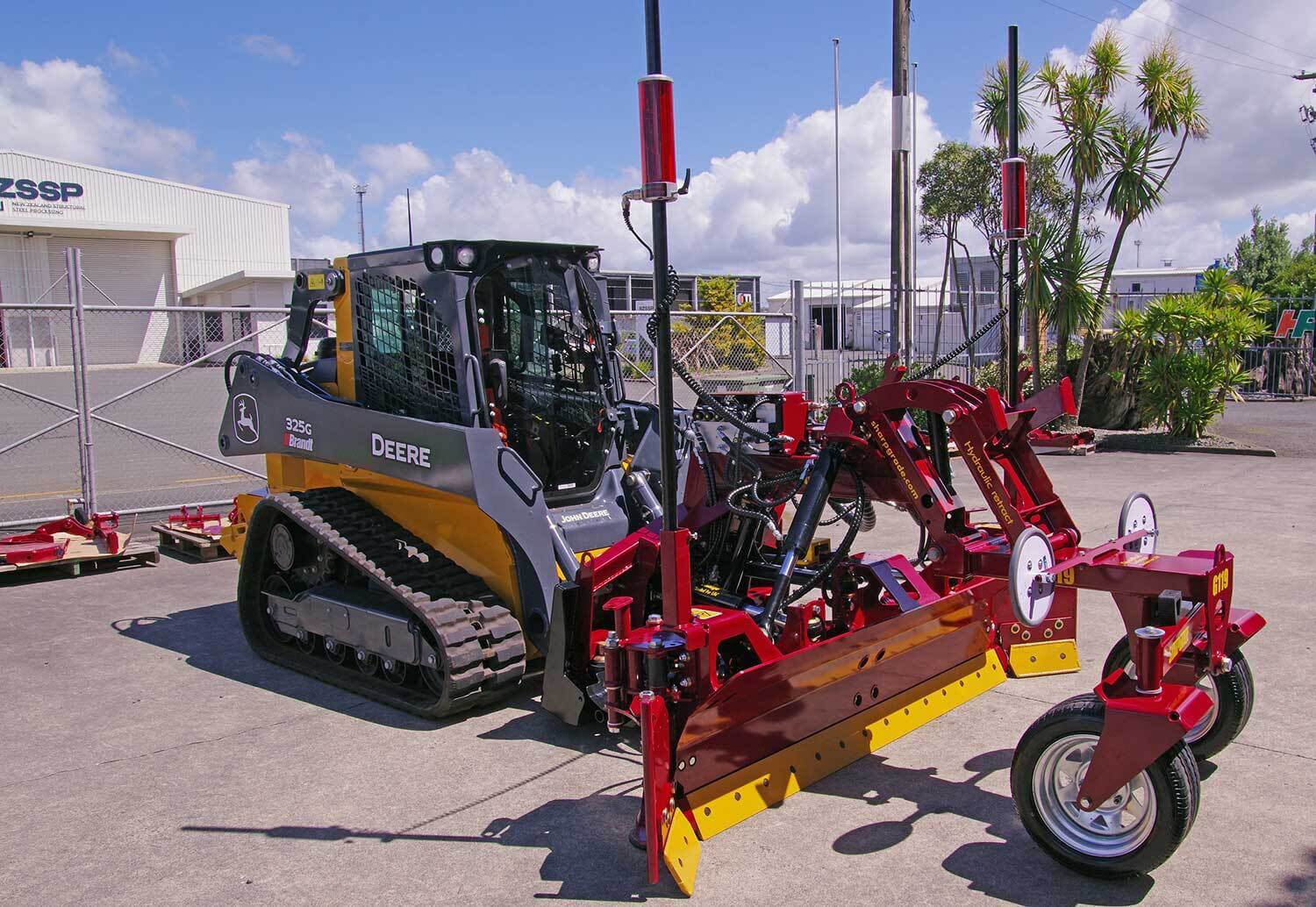

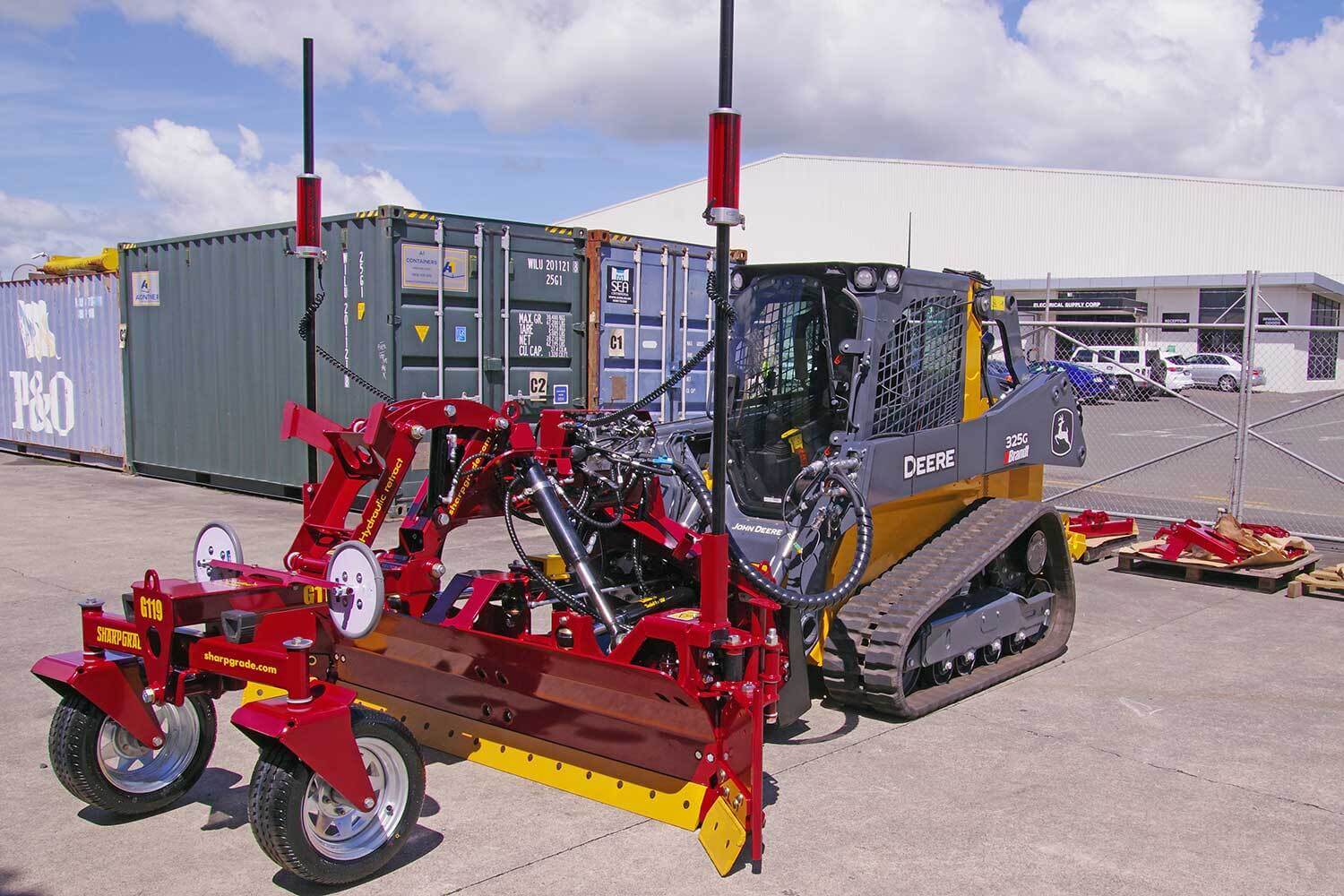

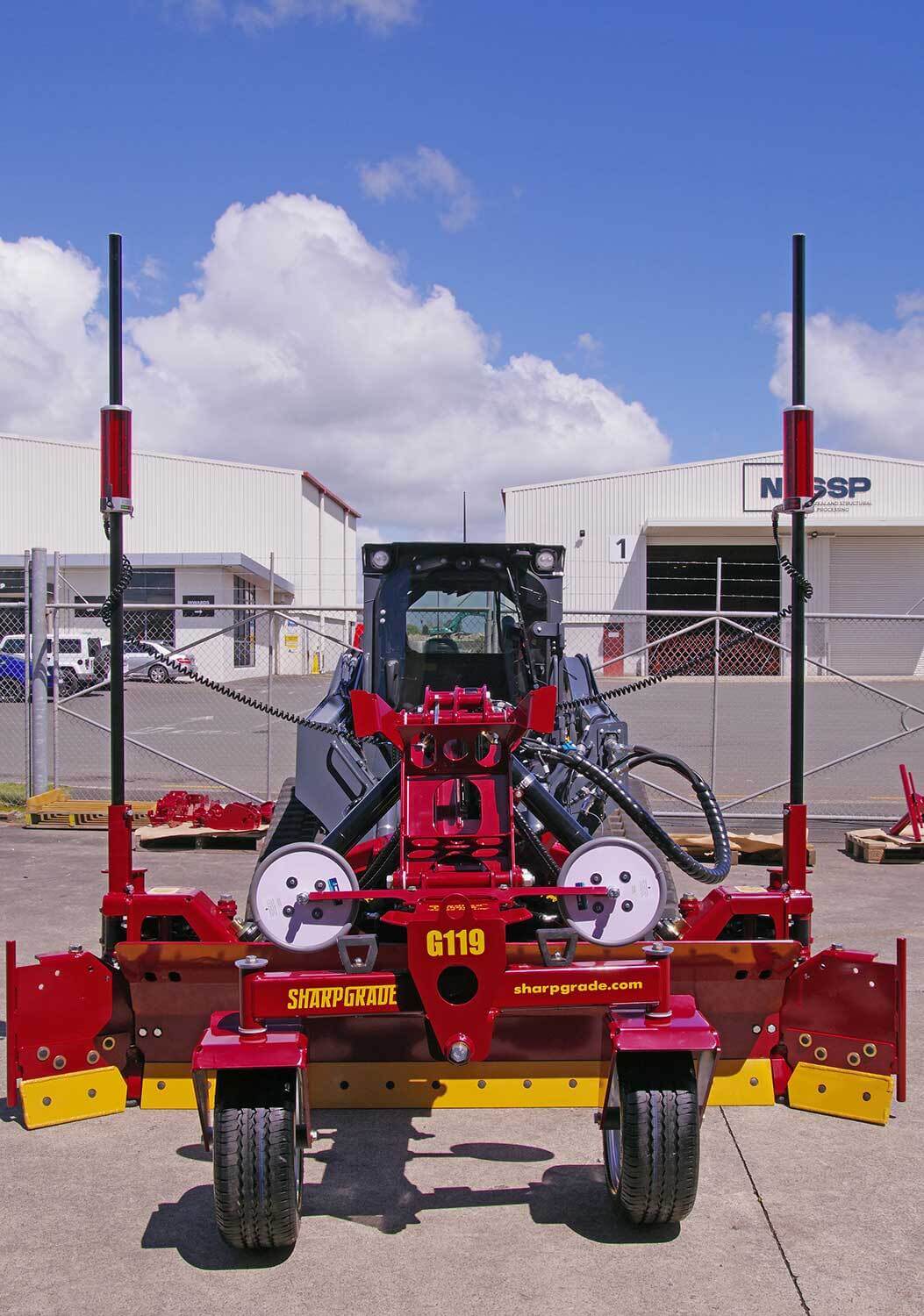

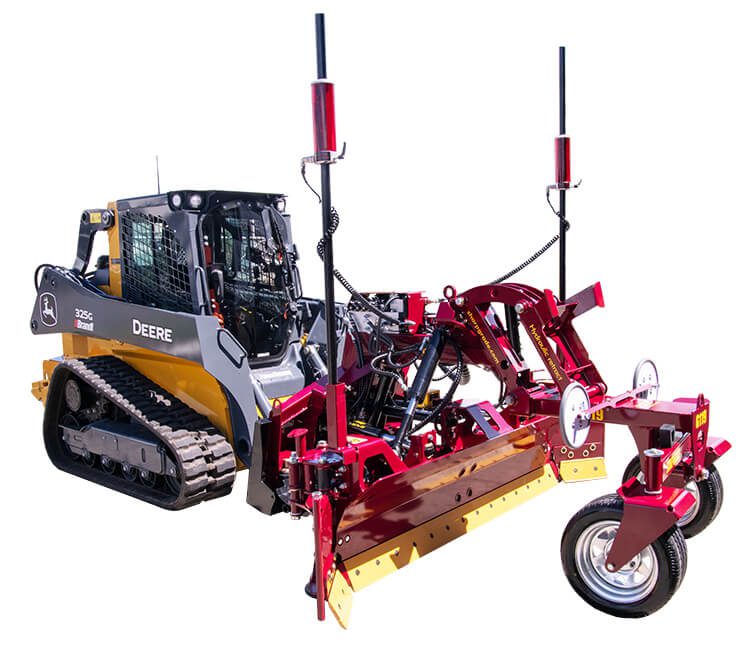

Why compromise? The G119 delivers the strength and accuracy of a full-sized grader with the maneuverability of your skid steer. Grade forwards or backwards, stay in control, and complete surfaces faster.
Equipped with SharpGrade’s patented QuadRod linkages that are sealed, shielded, and lifetime lubricated, it also features an adjustable hitch plate, underslung walking beam, and retractable front chassis. Built for large-frame loaders in the 75–100 HP range, the G119 is a workhorse for heavy stone, large pad preparation, roadwork, fine grading, curb construction, subdivisions, and 3D-controlled precision projects.
- Sealed, shielded and lifetime lubricated bearings throughout: Never requires greasing
- Patented QuadRod 3 linkage: keeps blade parallel throughout movement to maintain equal height between front & rear blade
- No centre pivot; 3 times faster to grade than conventional designs, no duck walking
- Adjustable Hitch plate: sets chassis level on lower stops for precision grading
- Underslung walking beam: reduces wheel scuff in turns
- Outboard mounted cylinders reduce cross coupling to a minimum
- Robust, narrow boxed chassis for unsurpassed visibility
- Angle cylinders are mounted above the material, for longevity
Benefits:
Accurate grading made easy
The SharpGrade Skid Steer Grader Blade enables you to accurately fine grade to within 1/8″ (3mm). Using a SharpGrade Grader Blade is up to ten times faster than levelling using a skid steer with standard bucket attachment.
The standard QuadGrade 2D Laser Machine Control System integrates with any 3D machine control system, allowing you to easily grade complex contours with several gradients, diverging offset crown and different cambers directly from the control of the SharpGrade.
Fast results
Designed specifically to work on skid steer and compact track loaders, the SharpGrade Grader Blade is the first in the world to work in forward and reverse, for optimal efficiency. Twin pivoting blades give the ability to cut, carry, trim, spread and finish in one pass, in either direction, for speed and control.
Robust, reversible hydraulic side wings give you the ability to carry material forwards or backwards when you need it.
A curved moldboard ensures wet material can be easily rolled. Operated from your machine’s hydraulic system, in-cab adjustments are a breeze and leveling is up to ten times faster than leveling using a skidsteer and standard bucket attachment.
Plug and play attachment
The SharpGrade Grader Blade is quick and easy to attach to your machine. No tools required, simply clip the unit into place and attach the hoses and the QuadGrade 2D system comes pre-tuned, ready to start work.
Maintenance free performance
Designed and built with longevity in mind, the SharpGrade Grader Blade features induction hardened pins, self-lubricated bushes and dirt seals in all moving joints, so it won’t let you down when time equals money. The patented, sealed QuadRod system keeps the blade rigid and accurate at all times, with low maintenance. High performance, proportional hydraulic valve, configurable to open & closed center, with built in relief protects the system from overload. Valves feature manual override capability to allow easy diagnosis if there is ever a problem.
Standard Features:
- QuadGrade 2D system with adjustable grade height receivers: Electronically adjust the grade height 1/25″ (1mm) at a time without leaving your seat. Increased receiver range means you stay on grade longer. It is highly accurate and easy to use, the blade can be manually operated by the 4 in 1 control at any time, with or without the laser control connected. Compatible with all large frame skid steers.
- Greased for life, low maintenance design. Induction hardened pins, permanently sealed, self-lubricated HardiLube bushes and dirt seals in all moving joints provide a long low maintenance life.
- Unique QuadRod Linkage. The Patented QuadRod 3 system gives unparalleled rigidity, rated to 135 HP machines (10,000kg per link). Utilizing 3 x Heavy Duty link arms, the outboard cylinders are directly connected to the outer edges of the blade, achieving the ultimate in accuracy. All joints are lifetime sealed, lubricated and maintenance free, with no greasing required.
- Adjustable hitch plate: Sets SharpGrade perfectly level with boom fully down, to provide the ultimate in rigidity. This reduces track and tire wear and boom and linkage wear, as the SharpGrade is pushing on the front of the machine, instead of transferring the load to the rear of the machine through the linkages. This is especially important with vertical lift machines. Adjustable hitch plate keeps chassis perpendicular with the ground, so side wings stay flat throughout their travel. Rear viewing ports allow operator to see the rear blade.
- Twin large parabolic mirrors: See the front blade and both front wing tips for confident grading in confined areas, along walls, curbs or foundations.
- Twin blades: Front blade is fixed and reversible. Rear blade is pivoting and reversible. Pivoting blade reduces packing between the blades.

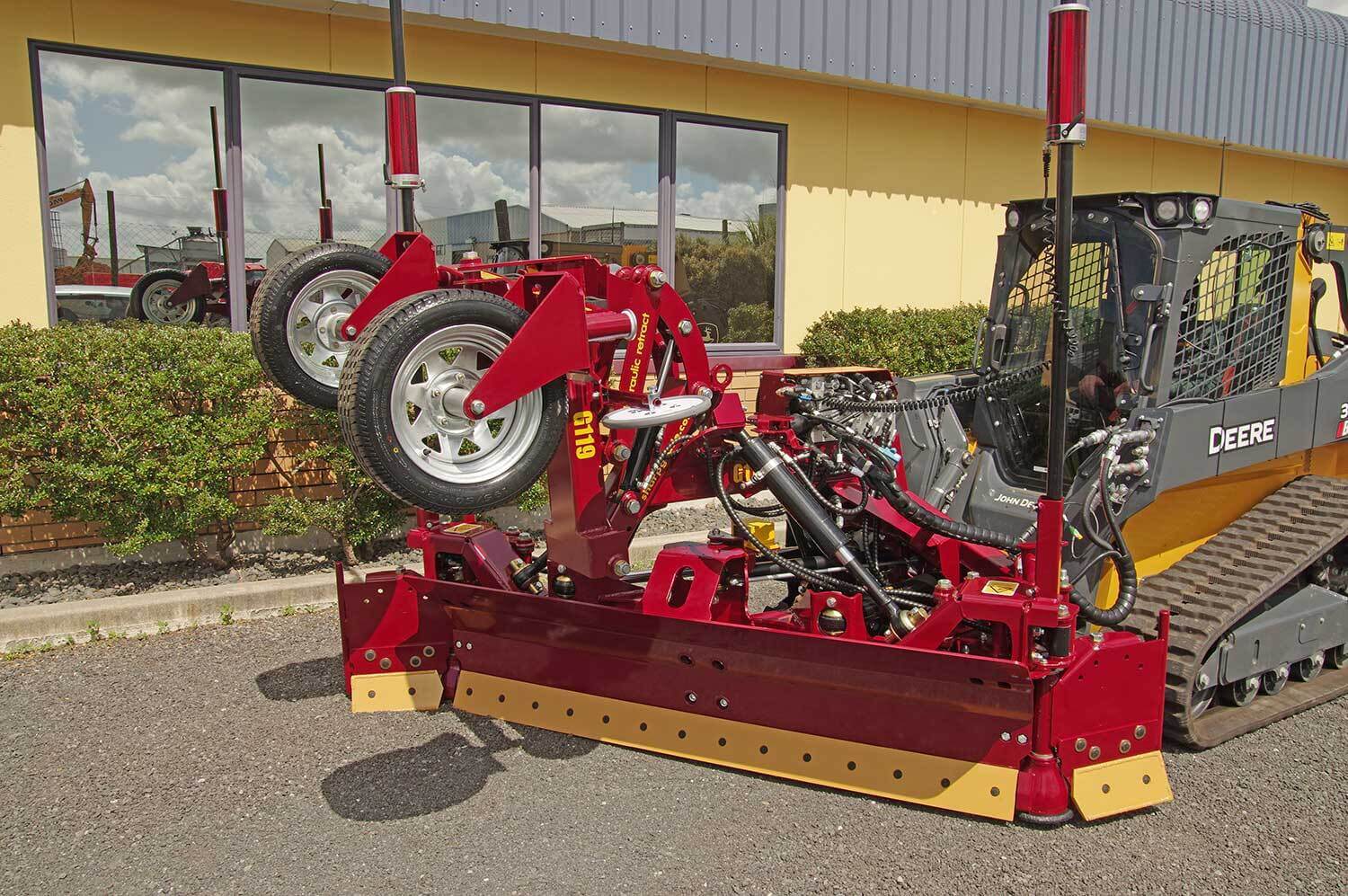

- Hydraulic Retracting Front Chassis: Raise and lower the front wheel assembly without leaving the cab.
- Underslung Walking Beam: Patented underslung walking beam reduces wheel scuff when turning.
- Tires: 175/50/R13C with labyrinth seals on wheel bearings keeping grit out.
