Transform Your Skid Steer or Compact Track Loader into a High-Precision Grading Machine
SharpGrade grader blade attachments are purpose-built for skid steers and compact track loaders, delivering the perfect blend of strength, innovation, and performance. Designed with our patented QuadRod linkage system and hydraulic side wings, these attachments help operators in construction, landscaping, and paving achieve flawless precision while maximizing efficiency.
Precision and Power – Without Compromise

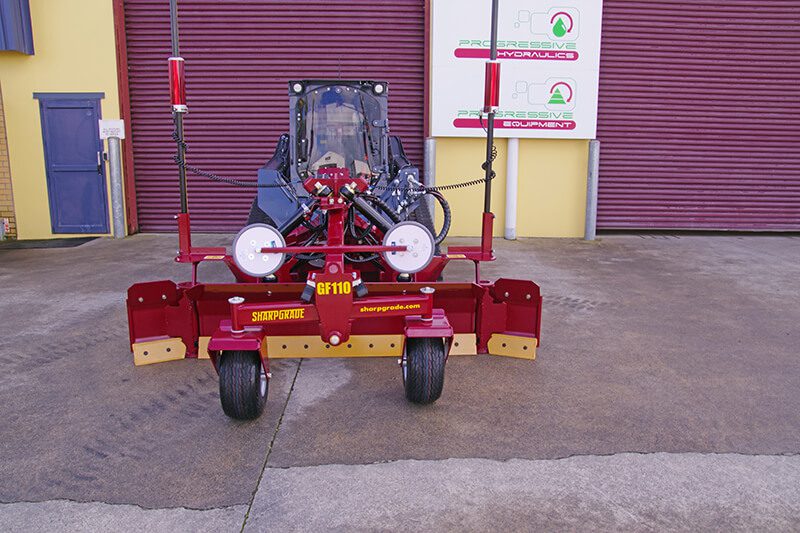

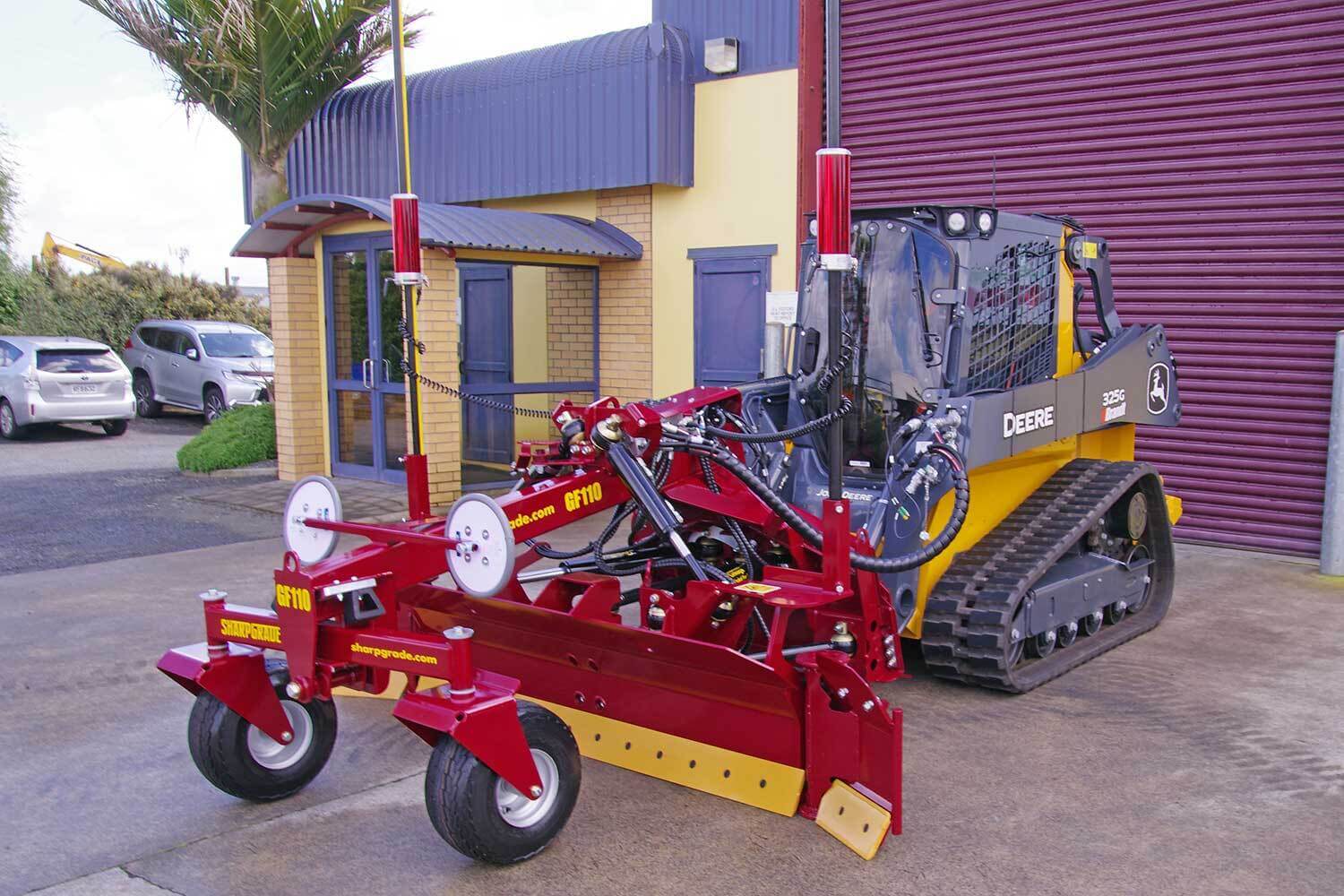

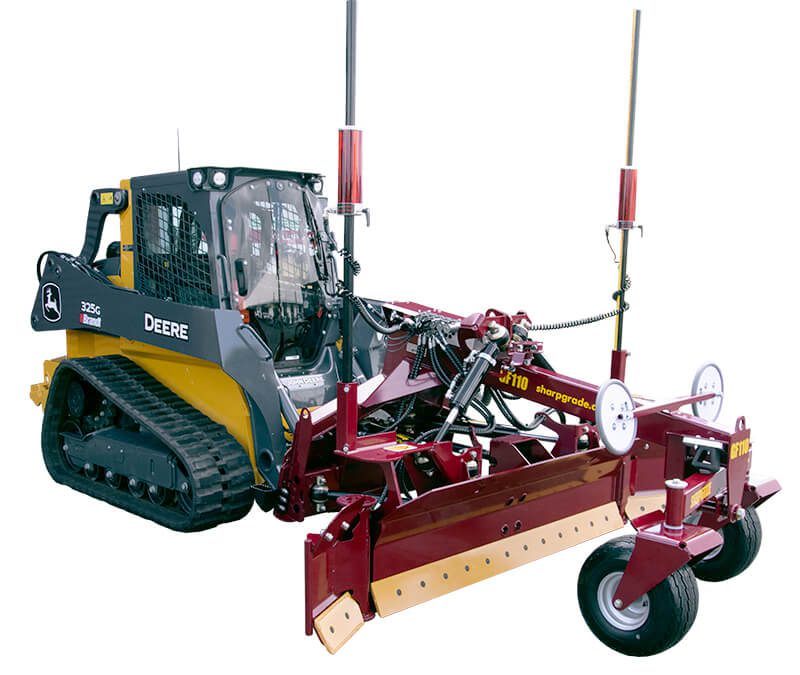

The GF110 turns your medium-frame loader into a true precision laser grader, giving you the accuracy and control of a full-size machine while maintaining tight maneuverability. Work in either direction, forward or reverse, with smooth, consistent results and faster completion times.
Engineered for loaders in the 65–90 HP range, the GF110 incorporates SharpGrade’s sealed and permanently lubricated QuadRod linkage, eliminating maintenance and extending service life. With its adjustable hitch plate and underslung walking beam, this model excels in a variety of medium-duty grading applications including road and path building, pad preparation, curb and subdivision work, and 3D precision grading.
Key Technical Highlights:
- Maintenance-Free Bearings: All pivot points use sealed, shielded, and lifetime-lubricated bearings—no greasing required.

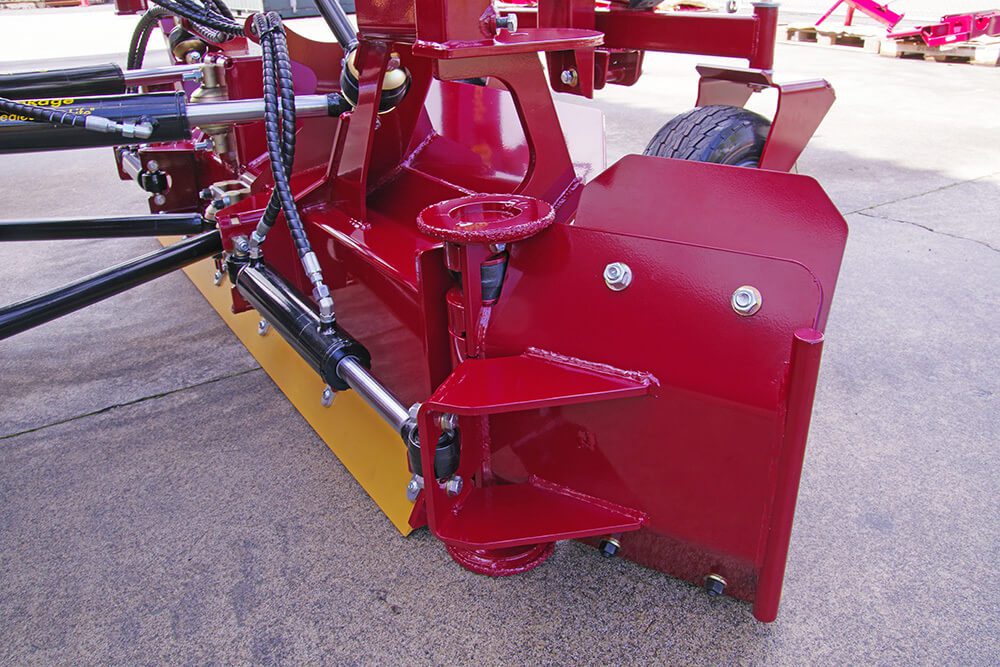

- QuadRod 3 Linkage System: Maintains consistent blade height front to rear during operation.
- No Center Pivot Design: Enables grading up to 3x faster than conventional center-pivot blades, eliminating “duck-walking.”
- Adjustable Hitch Plate: Allows the chassis to sit level for more accurate grading.
- Underslung Walking Beam: Minimizes wheel scuff during turns.
- Outboard Cylinders: Positioned to reduce cross-coupling and increase stability.
- Compact Boxed Frame: Enhances forward visibility for the operator.
- Elevated Angle Cylinders: Positioned above material flow for increased component lifespan.
Why Choose SharpGrade?
Effortless Accuracy
Fine grade with precision down to 1/8″ (3 mm). The SharpGrade blade outperforms traditional skid steer bucket grading methods by up to 10x in speed and consistency.
Integrated with the standard QuadGrade 2D Laser Machine Control System, the blade also works seamlessly with any 3D machine control platform. Complex grading tasks involving multiple slopes, offset crowns, or varied cambers are easily handled, all directly from the operator’s seat.
Grading in Both Directions
Purpose-built for skid steers and compact track loaders, this is the world’s first grader blade system that allows high-precision work in both forward and reverse. Dual pivoting blades cut, carry, level, spread, and finish in a single pass, whichever way you’re moving.
Reversible hydraulic wings help manage material directionally, while the curved moldboard ensures smooth rolling of wet or sticky material. Hydraulic adjustments are fully controlled from inside the cab, making grading operations quick and effortless.
Plug-and-Play Integration
Attaching the SharpGrade blade is fast and tool-free. Simply latch it into place, connect the hydraulic lines, and the pre-tuned QuadGrade 2D system is ready to go. You’re up and running in minutes.
Designed for Long-Term Performance
Built with high-quality components for extended service life, the SharpGrade blade includes:
- Induction-hardened pins
- Self-lubricating HardiLube bushes
- Dirt seals at all moving joints
The patented QuadRod system ensures your blade stays rigid and accurate under heavy loads, while a high-performance proportional hydraulic valve, compatible with both open and closed center systems, features built-in overload protection and manual override for easy diagnostics.
Standard Features:
- Maintenance-Free Construction: Lifetime-sealed, self-lubricating joints reduce servicing downtime.
- QuadRod Linkage System: Rated for machines up to 90hp. Outboard-mounted cylinders deliver unmatched rigidity and grading precision.
- Adjustable Hitch Plate: Maintains level chassis position for consistent side wing alignment and reduces unnecessary wear on tracks, tires, and machine linkages.
- Rear Viewing Ports: Offers clear sightlines to the rear blade.
- Twin Parabolic Mirrors: Improve visibility of front blade and wings, ideal for tight spaces and grading near walls or curbs.
- Dual Blades: Front blade is fixed and reversible; rear blade is pivoting and reversible for reduced debris buildup.
- Patented Underslung Walking Beam: Minimizes tire scrubbing during turns.
- Heavy-Duty Tires: 175/50/R13C tires with labyrinth-sealed wheel bearings to keep debris out and extend life.
If you’re looking to turn your skid steer or compact track loader into a high-performance grading system, the SharpGrade GF110 is built to outperform, with unmatched speed, accuracy, and ease of use.
