AG18070

AG18070

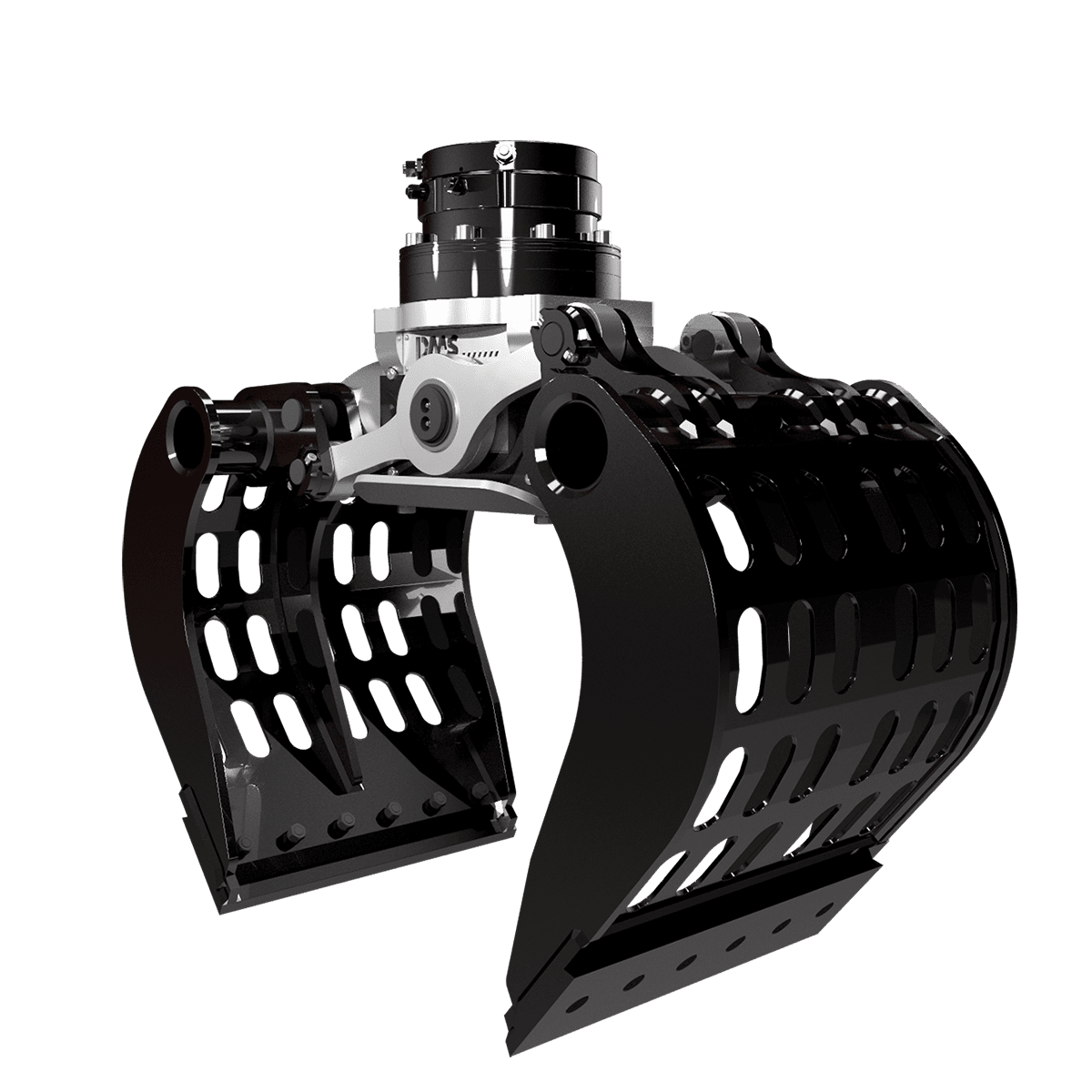

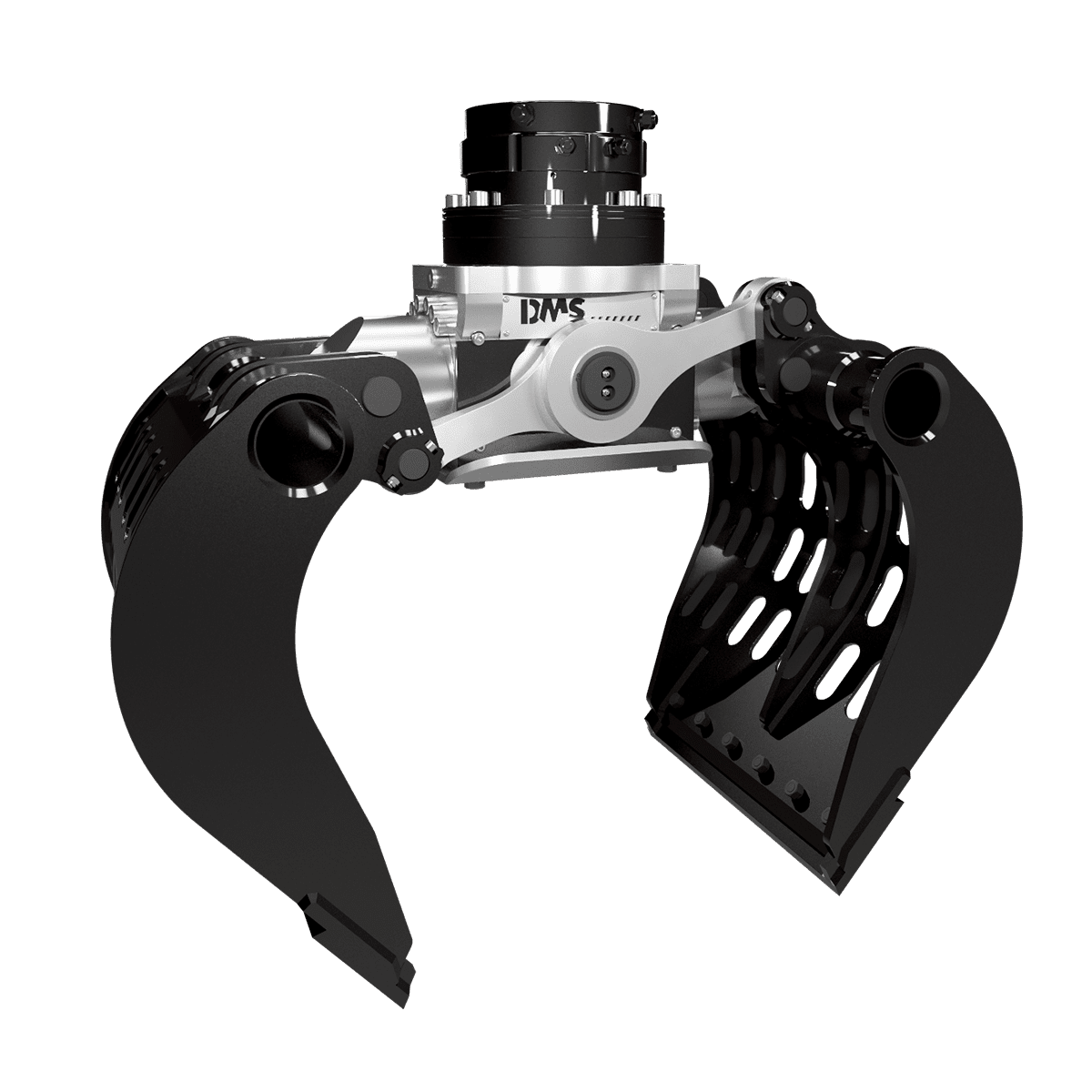

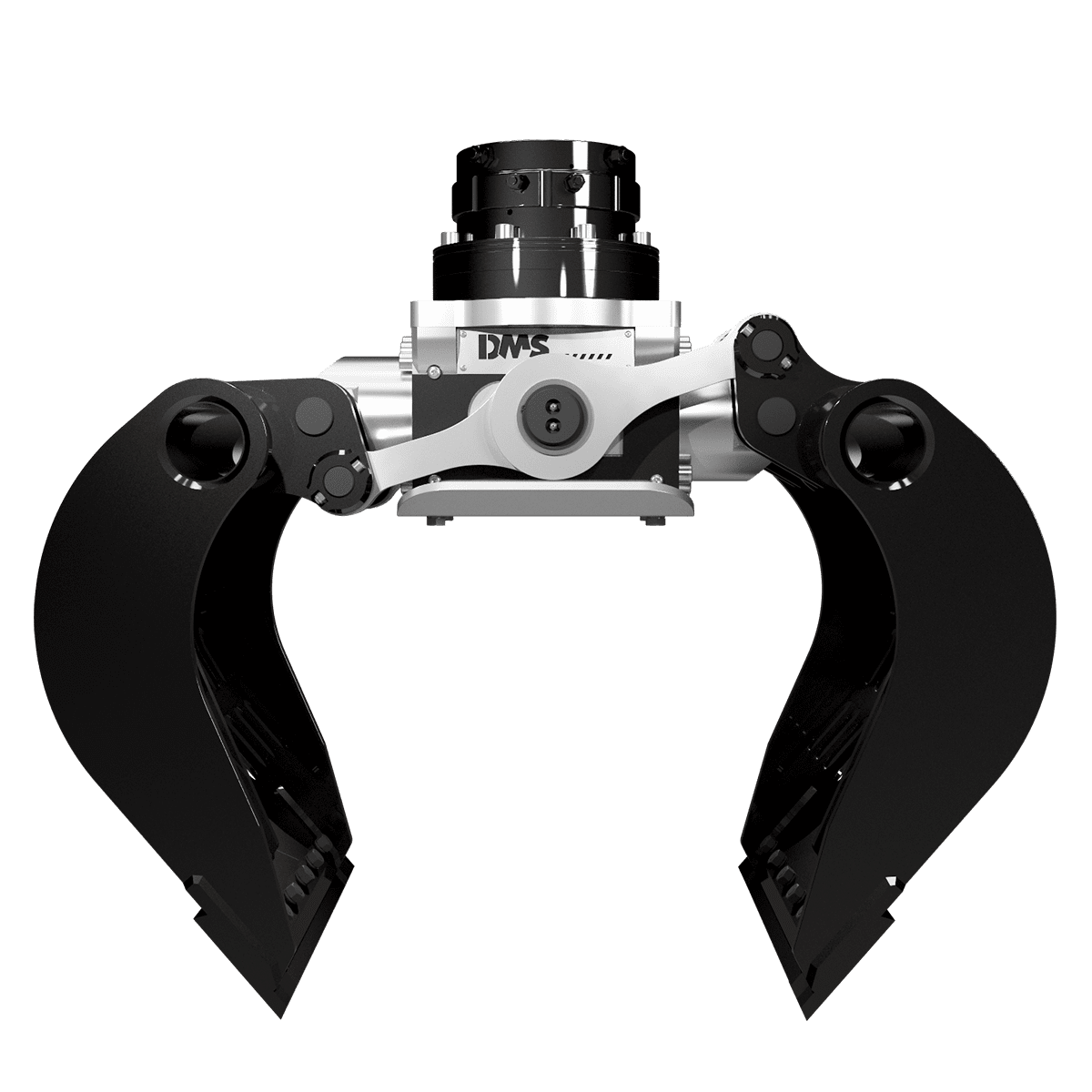

The Demolition Grab AG18070 by DMS Technology is a powerful and efficient attachment designed primarily for demolition work such as the removal of masonry and the dismantling of wooden structures. It can also be used as a versatile all-round tool for a wide range of additional applications. In addition to a high closing force and an optimised gripping volume, the patented cylinder technology provides a compact and highly robust design, making the grab suitable for demanding operating conditions.

Low profile
The grab is designed with a low overall height in both open and closed positions. Its compact construction provides an efficient ratio between performance and weight.
Optimal grip
The shells provide a wide opening span while remaining highly compact in the closed position. This design enables secure handling of objects with both large and small diameters.

Due to high-quality material composition and optimal lubrication.

Vulnerable components are completely enclosed and protected.

Reliable and powerful even under the toughest working conditions.

AG18070

The Demolition Grab AG18070 by DMS Technology is a powerful and efficient attachment designed primarily for demolition work such as the removal of masonry and the dismantling of wooden structures.

Description

The Demolition Grab AG18070 by DMS Technology is a powerful and efficient attachment designed primarily for demolition work such as the removal of masonry and the dismantling of wooden structures. It can also be used as a versatile all-round tool for a wide range of additional applications. In addition to a high closing force and an optimised gripping volume, the patented cylinder technology provides a compact and highly robust design, making the grab suitable for demanding operating conditions.

Low profile
The grab is designed with a low overall height in both open and closed positions. Its compact construction provides an efficient ratio between performance and weight.
Optimal grip
The shells provide a wide opening span while remaining highly compact in the closed position. This design enables secure handling of objects with both large and small diameters.
Capacity [l] 400
Weight (without rotator) [kg] 743
Weight rotator [kg] 164
Operating pressure opening/closing [bar] 350
Operating pressure rotation [bar] 320
Recommended pump capacity rotation [l] 15–30
Recommended pump capacity opening/closing [l] 40–150
Closing force [kN] 50
Torque [Nm] 4200
