Pipegrip

Pipegrip

The Pipegrip greatly expands the application possibilities of your DMS product. Objects with sensitive and smooth surfaces can be moved precisely using your grab. Thanks to the innovative round contact point, round elements such as manhole rings and pipes can be positioned freely without the need for slings or ring clamps. Fitting the accessories to the gripper teeth takes only a few minutes.

Rounded contact point
Specially developed contact surfaces enable gentle and safe gripping of various shapes.
Double-sided grip
Depending on the shape and size, Objects can be gripped or clamped from both inside and outside.

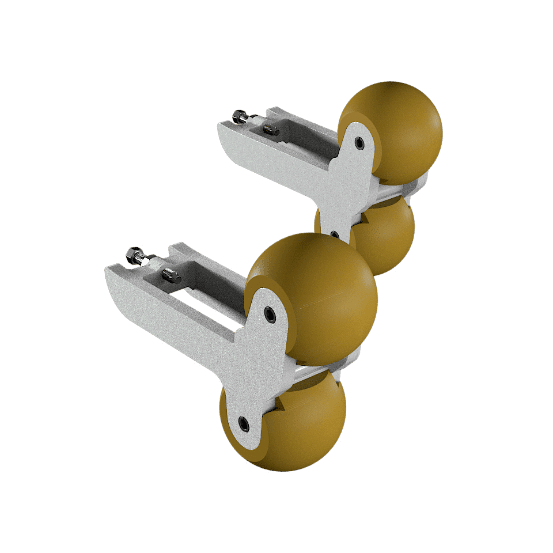

The Pipegrip is simply fitted onto the gripper tooth and locked with a screw.

The rubbery material prevents scratches and damages to the load surface.

The accessory eliminates the need to purchase additional machinery and equipment.

Pipegrip

The Pipegrip greatly expands the application possibilities of your DMS product. Objects with sensitive and smooth surfaces can be moved precisely using your grab. Thanks to the innovative round contact point, round elements such as manhole rings and pipes can be positioned freely without the need for slings or ring clamps. Fitting the accessories to the gripper teeth takes only a few minutes.

Category:

Description

The Pipegrip greatly expands the application possibilities of your DMS product. Objects with sensitive and smooth surfaces can be moved precisely using your grab. Thanks to the innovative round contact point, round elements such as manhole rings and pipes can be positioned freely without the need for slings or ring clamps. Fitting the accessories to the gripper teeth takes only a few minutes.

Rounded contact point
Specially developed contact surfaces enable gentle and safe gripping of various shapes.
Double-sided grip
Depending on the shape and size, Objects can be gripped or clamped from both inside and outside.
*in combination with Tooth Conversion Kit
Shell width [mm]300350400500
Product modelAG2030*
SG2030
AG3535*
SG3535
GL2035
GL3535(P)
AG3540*
AG6040*
SG3540
SG6040​
GL3540
GL6040(P)
AG9050*
SG9050
GL9050(P)
Max. load inside grip [Ø mm]6007509801500
Max. load outside grip [Ø mm]1000120014001900
Number of Pipegrips3334
Load capacity [kg]200350600900

Data Sheet Download
