S30 Cutting Bar new

S30 Cutting Bar new

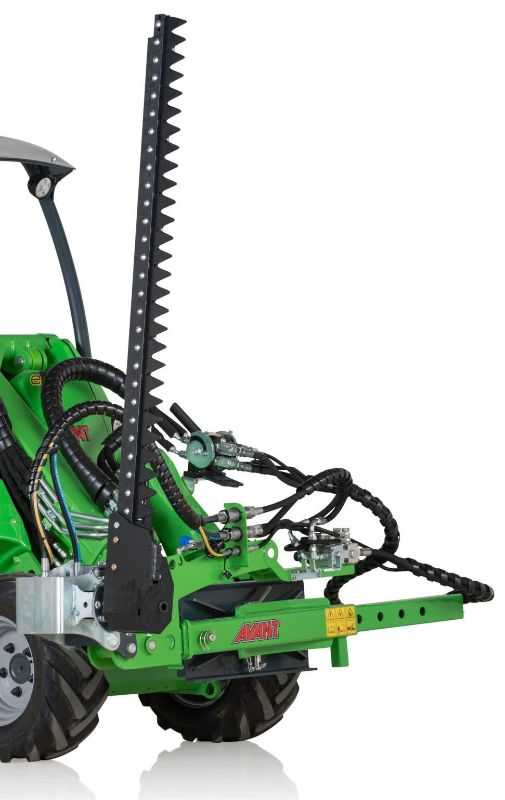

There are two models of cutting bars that mount on the sidearms with the S30 quick-attach system (both on the mechanical & hydraulic sidearm). They cannot be mounted on the attachment coupling plate of the loader.

The A430938 cutting bar is equipped with the same cutting blades and blade guides as the A35676 cutting bar. The frame and actuator mechanism are however stronger, which means the A430938 bar is optimized for hedge cutting and doesn’t work too well with hay because of the higher frame. There are wear plates at each end of the cutting bar, useful when working on paved and asphalt surfaces for instance.

The A434613 cutting bar with double knives is a more precise hedge cutter and makes a cleaner cut thanks to the double knife design which cuts the branches by sawing them.

The mounting bracket of the cutting bars is pivoted and locked with a bolt, and can be turned manually in different positions. This gives the possibility to for instance cut the hedge horizontally, vertically and in different angles.The cutting bars are also equipped with a pressure relief valve which protects the unit if it hits an obstacle.

S30 Cutting Bar new

There are two models of cutting bars that mount on the sidearms with the S30 quick-attach system (both on the mechanical & hydraulic sidearm).

Category:

Description

There are two models of cutting bars that mount on the sidearms with the S30 quick-attach system (both on the mechanical & hydraulic sidearm). They cannot be mounted on the attachment coupling plate of the loader.

The A430938 cutting bar is equipped with the same cutting blades and blade guides as the A35676 cutting bar. The frame and actuator mechanism are however stronger, which means the A430938 bar is optimized for hedge cutting and doesn’t work too well with hay because of the higher frame. There are wear plates at each end of the cutting bar, useful when working on paved and asphalt surfaces for instance.

The A434613 cutting bar with double knives is a more precise hedge cutter and makes a cleaner cut thanks to the double knife design which cuts the branches by sawing them.

The mounting bracket of the cutting bars is pivoted and locked with a bolt, and can be turned manually in different positions. This gives the possibility to for instance cut the hedge horizontally, vertically and in different angles.The cutting bars are also equipped with a pressure relief valve which protects the unit if it hits an obstacle.

Reviews

There are no reviews yet.

Be the first to review “S30 Cutting Bar new”

Your email address will not be published. Required fields are marked *

A430938A434613
WORKING WIDTH 1500 mm 1500 mm
TOTAL WIDTH1600 mm1790 mm
WEIGHT 90 kg 58 kg
PRODUCT NO. A430938 A434613
